Capacity: 200t/h       Materials:Granite

Applications:Building aggregate

Main equipment:PP1060 jaw crushing plant, PP250SMHS mobile cone crushing and screening plant, PP6000VSIS mobile vertical shaft impact c

Introduction:

Granite is kind of hard stone. But compared with basalt, it is easier to be crushed because of its brittleness. Therefore, it usually has many processing solutions and configuration schemes. Its main components are hard materials with the hardness between 6 and 8 and compressive strength above 300Mpa, like quartz and feldspar. Therefore, its crushing process is usually divided into two or three stages.
Because of its high hardness, jaw crusher, cone crusher and impact crusher are mainly used in secondary and third crushing. We recommend two-stage crushing method for customers with obvious price advantage in stone market. However, in consideration of long-term production, three-stage crushing can reduce cost greatly.

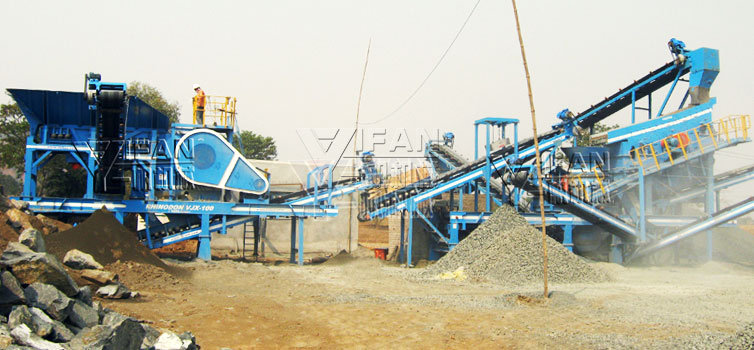

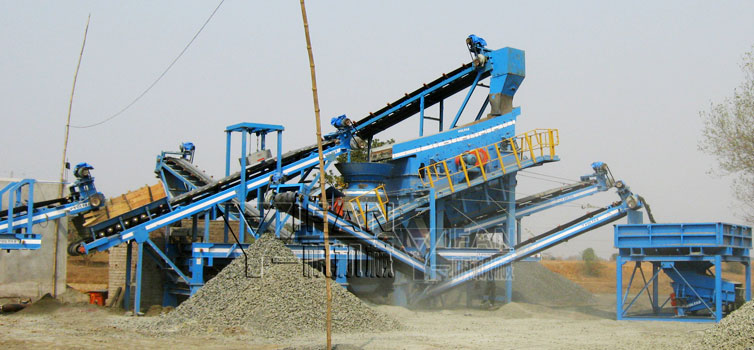

In the next, we will introduce the production process of crushing granite in detail. First, big stones are delivered from material hopper to jaw crusher for primary crushing by vibrating feeder uniformly. Next the crushed stones will be transported to cone crusher for fine crushing with the function of belt conveyor and then screened by vibrating screen. Stones that cannot meet granularity requirements will be crushed again by sand making machine (vertical shaft impact crusher), and finally they will be qualified materials after being screened by 4YK circular screen. In addition, we can also equip crushing plant with dust remover according to environmental requirements.
YIFAN granite crushing production line has the following performance features: 1. High automation degree, the whole production line needs little manual operation except starting up, closing down and daily maintenance. 2. High production efficiency, low production cost and favorable interest. 3. Its advanced electric control system can ensure smooth production and reliable performance of the whole line.
