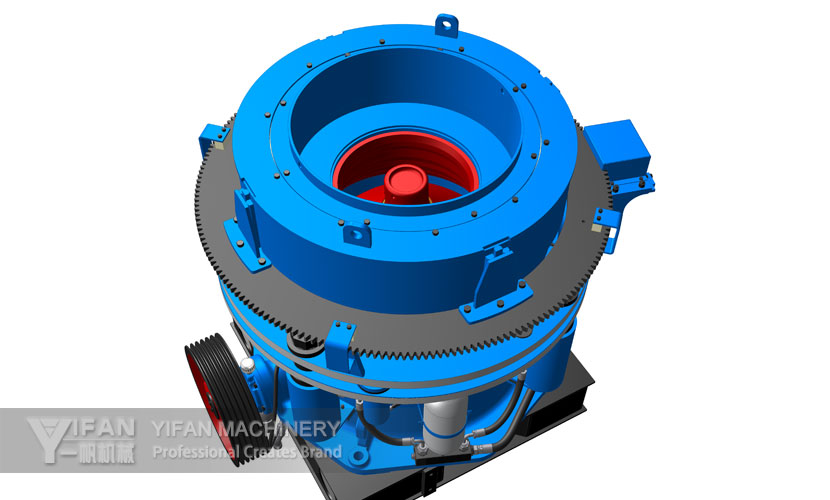

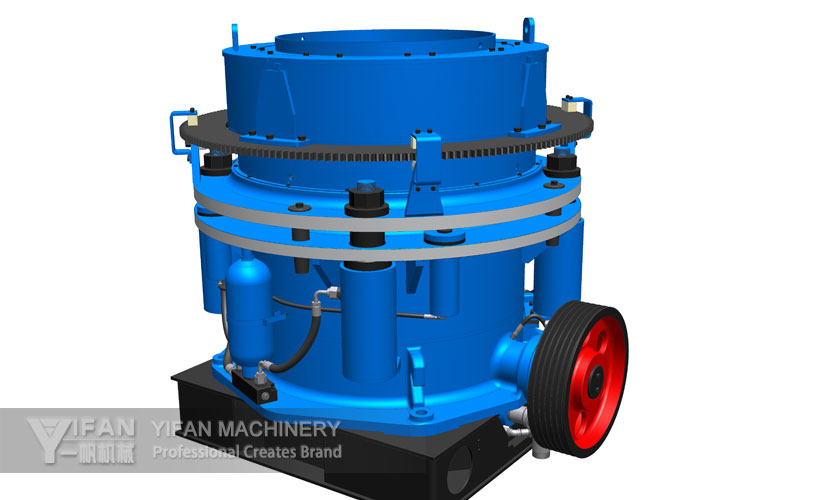

E-SMS series hydraulic cone crusher is a new series product with high performance, which absorbs advanced technology in the world. It is suitable for crushing high and medium hardness ores and rocks.

1. High performance and advanced technology;
2. Fixed main shaft and optimized crushing cavity can improve capacity.
3. Uniform composition and better product shape;
4. Standard hydraulic design, simple operation and flexible adjustment;
5. Independent single acting cylinder makes system performance more stable.
6. Integrated base and simplified installation process;
7. Improved structure integrates function and blazonry.

Technical Date of E-SMS Series Fully Hydraulic Cone Crusher:

Model	Capacity（t/h）-Open Circuit，Closed Side Setting（mm）
	10	12	15	20	25	32	40	45	52	64
E-SMS2000	90-120	105-135	130-170	155-195	170-220	190-235	220-260
E-SMS3000	115-140	130-160	170-200	200-240	230-280	250-320	300-380	350-440
E-SMS4000	140-175	180-220	220-280	260-320	295-370	325-430	370-500	410-560	465-630
E-SMS5000	175-220	220-280	260-340	320-405	365-455	405-535	460-630	510-700	580-790
E-SMS6000				380-500	430-590	450-660	530-770	570-830	650-960	760-1160
E-SMS8000	260-335	320-420	380-500	440-550	495-730	545-800	620-960	690-1050	790-1200
E-SMS8500	465-560	490-580	510-615	580-690	735-980	920-1180	1150-1290	1280-1610	1460-1935



Model	Motor Power （KW）	Cavity Type	Close Side Feed Opening（mm）	Open Side Feed Opening（mm）	Minimum Discharge Opening(mm)
E-SMS2000	132-160	C	185	208	20
		M	125	156	17
		F	95	128	15
		DC	76	114	10
		DM	54	70	6
		DF	25	66	6
E-SMS3000	200-220	EC	233	267	25
		C	211	240	20
		M	150	190	15
		F	107	148	12
		DC	77	123	10
		DM	53	100	8
		DF	25	72	6
E-SMS4000	315	EC	299	333	30
		C	252	292	25
		M	198	245	20
		F	111	164	15
		DC	92	143	10
		DM	52	107	8
		DF	40	104	6
E-SMS5000	355-400	EC	335	372	30
		C	286	322	25
		M	204	246	20
		F	133	182	15
		DC	95	152	12
		DM	57	116	10
		DF	40	105	6
E-SMS6000	450-500	EC	350	390	38
		C	280	325	30
		M	200	250	20
		F	120	170	16
		EF	60	115	13
E-SMS8000	630	EC	353	375	32
		C	297	340	32
		M	267	308	25
		F	219	264	16
		DC	155	210	13
		DM	92	150	10
		DF	33	98	5
E-SMS8500	630	C	343	384	30
		M	308	347	25
		F	241	282	20
		DC	113	162	12
		DM	68	117	6
		DF	40	91	6

The crusher capacities listed are based on instantaneous sampling of medium hardness material. The above data are for reference only, please contact our engineers for equipment selection of specific projects.
Note：The production capacity table can be used as a data reference for the preliminary selection of E-CCM series hydraulic cone crushers. The data in the table are suitable for materials with a bulk density of 1.6t/m3, screening of feed materials smaller than the discharge port, open circuit Production capacity under operating conditions; under the condition of high fine-grained content in the feed and closed-circuit operation, the equipment capacity is 15%-30% higher than that of open-circuit operation. As an important part of the production circuit, the crusher is an important part of its performance. The performance part depends on the correct selection and operation of the feeder, belt breaker, vibrating screen, support structure, motor, transmission and silo.
