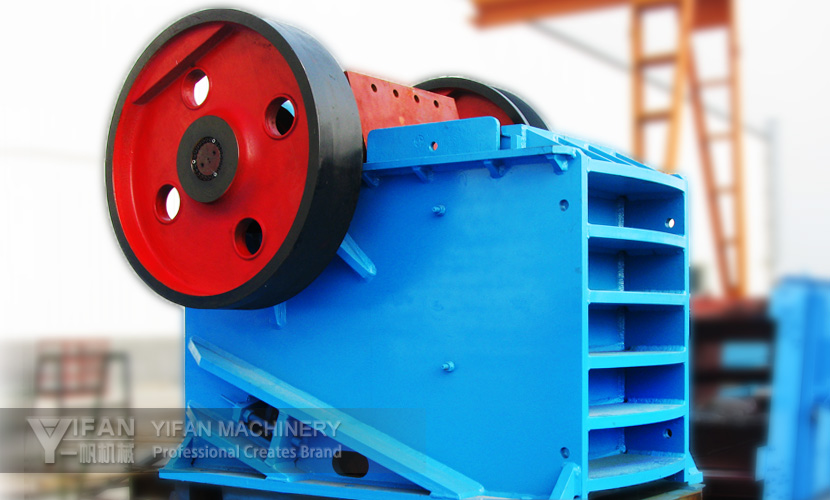

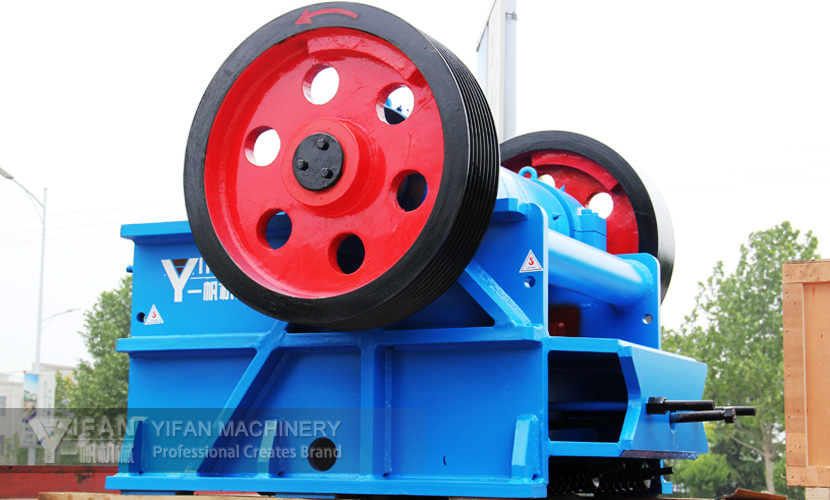

PE/PEX series single toggle jaw crusher has the features of great crushing ratio and uniform product size. It can be used to crush materials with compressive resistance lower than 320 Mpa. PE series is used in primary crushing. PEX series is used in secondary crushing and fine crushing.

1. Simple structure;
2. Reliable operation;
3. Convenient maintenance;
4. Low operation cost;

Model	Size of Feed Opening (mm)	Max Feed edge (mm)	Discharge Range Opening (㎜)	Capacity (t/h)	Motor power (kw)
PE-400×600	400×600	340	40-100	16-64	30
PE-500×750	500×750	425	50-100	40-96	55
PE-600×900	600×900	500	65-180	48-136	55-75
PE-750×1060	750×1060	630	80-180	115-240	90-110
PE-870×1060	870×1060	750	170-270	232-376	90-110
PE-900×1200	900×1200	780	100-200	160-384	110-132
PE-1000×1200	1000×1200	850	200-280	304-440	110-132
PE-1200×1500	1200×1500	1020	150-300	400-800	200
PEX-150×750	150×750	120	10-40	8-26	15
PEX-250×1000	250×1000	210	25-60	16-48	30-37
PEX-250×1200	250×1200	210	25-60	21-56	37
PEX-300×1300	300×1300	250	20-90	21-85	75

Note:
The capacity is total tons per hour passing through crusher at open circuit when crushing medium and low hardness materials with the bulk density of 1.6x10³kg/m³. Capacity is relative to physical character, feeding type, feeding size, composition, etc.
