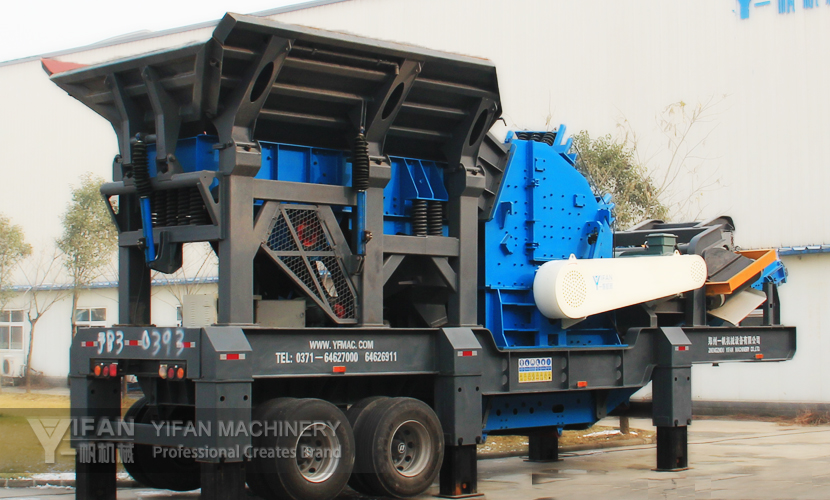

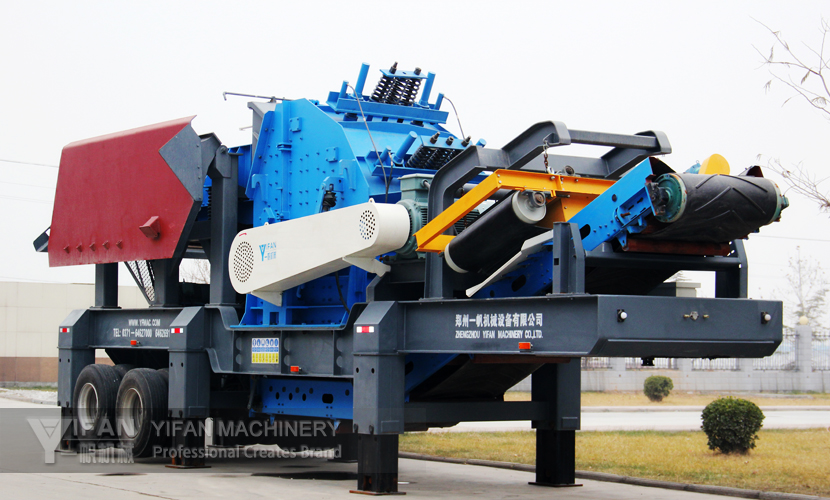

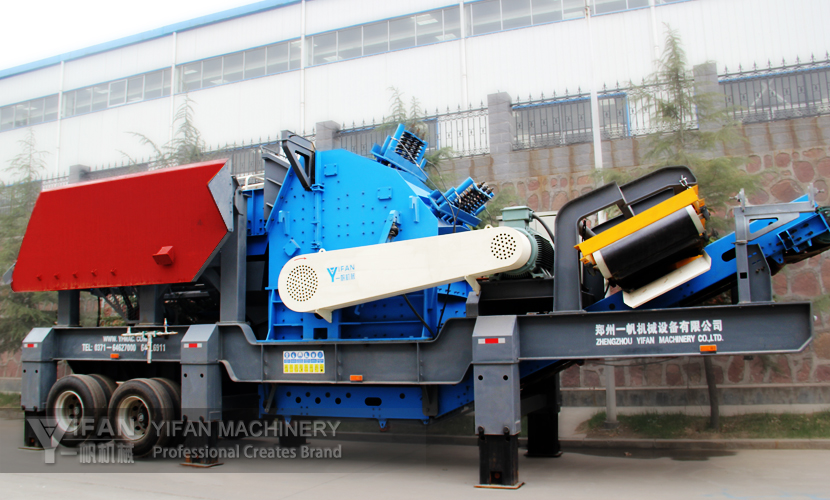

YIFAN mobile impact crushing plant is used to crush large materials in two stages, and then screen the crushed materials according to different specifications. It can finish crushing and screening within a complete production process to produce required size and output for consumers.

YIFAN mobile impact crushing plant has the advantage of reasonable matching, unobstructed discharge, reliable performance, convenient operation, high efficiency and saving energy. Because of its supreme mobility performance, there is no need for customers to concern more about raw material place or construction place. Equipped with different configurations, it can produce products with different specifications.

Category	Model
HCP Impact Plants	PP139HCP	PP239HCP	PP255HCP	PP359HCP
Transport dimensions
Length(mm)	10800	11400	11490	12000
Width(mm)	2780	2780	2880	2865
Height(mm)	4170	4300	4470	4500
Weight(kg)	30	39.3	46.3	42
Axle weight(kg)	19	24.6	30.1	29
King pin weight(kg)	50/11.0	90/14.7	90/16.2	90/13.0
Impact crusher
Model	HCP139	HCP239	HCP255	HCP359
Feed opening(mm)	400*1080	400*1080	400*1430	860*1520
Maximum feed size	400	500	500	600
Capacity(m3/h)	50-80	70-120	100-180	160-250
Feeder
Model	GZT0724	GZT0932	ZSW3895	GZT1148
Feed hopper volume(m3)	3.2	7.6	9	10
Hopper width(mm)	2200	3150	3290	3000
Main belt conveyor
Model	B800X7.0Y	B800X7.5Y	B1000X7.2Y	B1000X7.2Y
Side of the belt conveyor
Model	B400X2.7Y	B500X2.7Y	B500X2.7Y	B500X2.7Y
Separators (optional)
Model	RCYD-8.0	RCYD-8.0	RCYD-10.0	RCYD-10.0
Frame axes
Number of axes	2	2	2	3

Note: The capacity is total tons per hour passing through crusher at open circuit when crushing medium and low hardness materials with the bulk density of 1.6x10³kg/m³. Capacity is relative to physical character, feeding type, feeding size, composition, etc.
