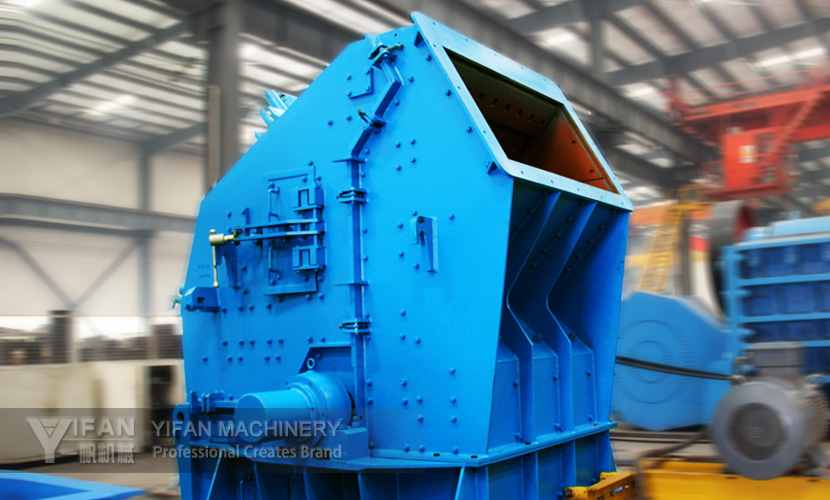

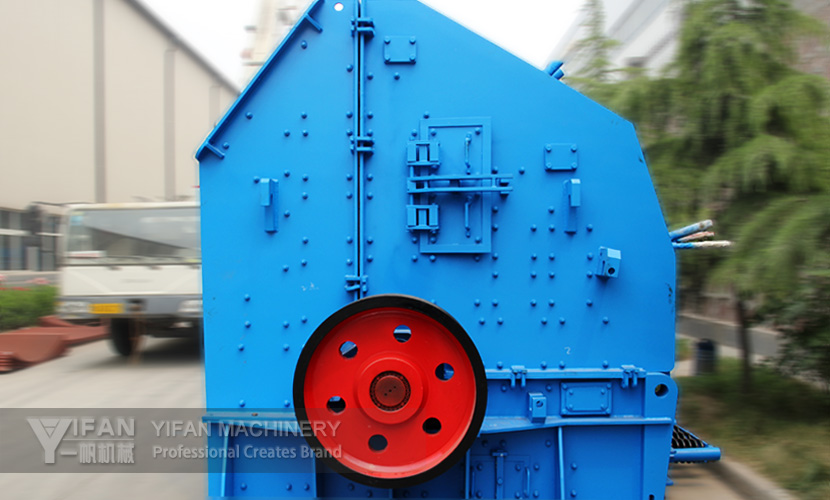

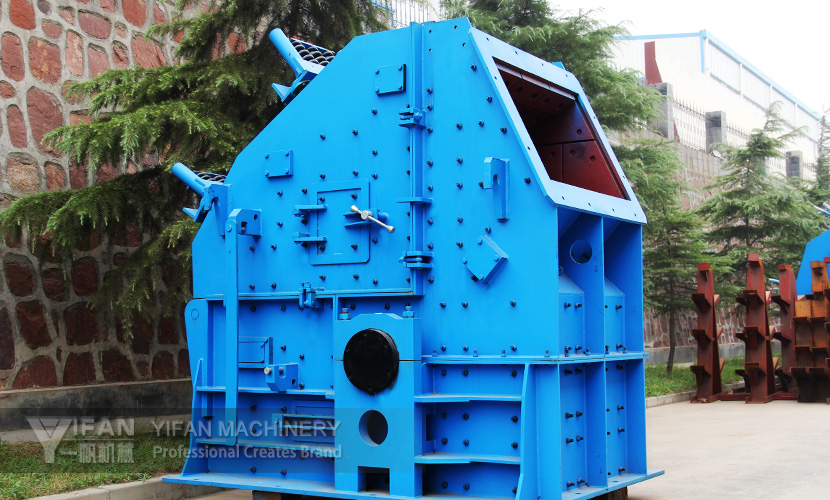

HC/E-HSI series impact crusher is manufactured on the basis of advanced foreign technology and domestic applications. With the advantages of more human-oriented, simple design, reasonable structure, better cavity and large capacity, HC/E-HSI series impact crusher can crush all kinds of ores in primary and secondary crushing process.

1. Heavy type rotor with optimized design, reasonable structure and enhancing rotational inertia can take finite element endurance analysis. It can achieve higher crushing ratio, better crushing and abrasion resistance performance.
2. Standard scaleboard can increases interchangeability, which will decrease spare part repertory and variety, and make replacement much easier.
3. Unique hydraulic device design is convenient for operators to open the chassis, replace accessories, and adjust the discharge gate.
4. The simple structure of impact frame and grinding frame has the advantages of easy operation, convenient maintenance and low cost.

Technical Data of HC Series Impact Crusher:

Model	Max Feeding Size (mm)	Throughput (t/h)	Motor Power (kW)	Dimension(L×W×H)(mm) (the biggest size)
HC128	400	40-70	37-55	3115×1600×2932
HC139	400	50-80	55-75	3060×2048×2935
HC239	600	100-180	110-132	3095×2048×2970
	200	180-330
HC255	600	100-290	132-200	3095×2398×2970
	200	220-400
HC359Ⅱ	750	180-350	200-280	3415×2666×3127
	250	280-460
HC459	750	220-450	250-315	3717×3020×3301
	250	300-520
HC579	900	250-550	400-500	3552×3547×3231
	300	400-700
HC679	900	400-700	560-630	4019×4064×3652
	300	500-800
HC779	1100	600-900	630-900	4785×4338×4849
	400	800-1200
HC798	1100	750-1100	900-1100	4786×4851×4859
	400	1000-1400
HC898	1200	1000-1500	1000-1400	5355×5345×5454
	450	1400-1800
HC8118	1300	1500-2000	1400-1800	5355×5945×5454
	500	1700-2100
HC8138	1300	1800-2500	1600-2200	5348×5527×5454
	500	2100-2850
HC998	1250	1200-1500	1250-1600	5670×5410×5795
	450	1550-2000
HC9118	1350	1450-1950	1600-2000	5670×6015×5795
	600	1900-2300
HC10118	1400	1750-2250	1800-2240	6120×6192×6268
	600	2100-2600
HC10138	1500	2000-2600	2240-2500	6120×6775×6268
	650	2500-3100
HC10158	1500	3600-4000	2800-3200	6120×7210×6280
	650	6200-5000

Technical Data of E-HSI Series Impact Crusher:

Model	Max Feed Size (mm)	Throughput (t/h)	Motor Power (kW)	Dimension(L×W×H)(mm) (the biggest size)
E-HSI127	180	40-120	55-110	2261×1664×1865
E-HSI139	180	70-150	75-160	2295×2020×1865
E-HSI153	180	100-200	90-200	2330×2450×1865
E-HSI255	200	130-250	160-250	3000×2800×2850
E-HSI359	250	180-300	220-315	3210×3030×2720
E-HSI379	300	240-460	250-355	3210×3530×2720
E-HSI459	400	250-450	250-355	3340×3070×2780
E-HSI498	400	330-560	450-500	3340×4070×2780
E-HSI579	450	320-550	400-500	3420×3670×2850
E-HSI598	450	400-685	500-630	3420×4170×2850
E-HSI5118	450	480-800	560-710	3420×4670×2850
E-HSI679	500	400-720	500-630	3530×4350×3080
E-HSI6118	500	600-1000	800-1000	3530×5215×3080
E-HSI779	500	550-950	630-900	3950×4410×3822
E-HSI798	500	700-1400	800-1100	3950×4880×3822
E-HSI7138	550	900-1700	1100-1400	3950×4880×3822

Note: Grinding chamber is optional.The crusher capacities listed are based on instantaneous sampling of medium hardness material. The above data are for reference only, please contact our engineers for equipment selection of specific projects.
