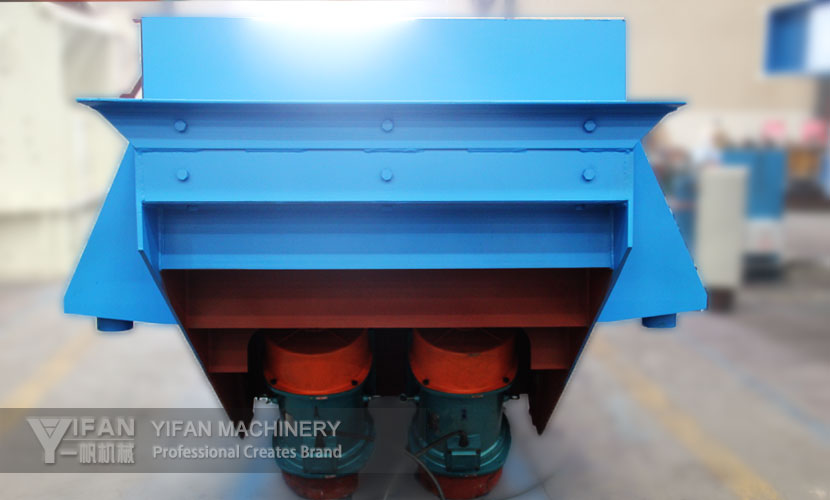

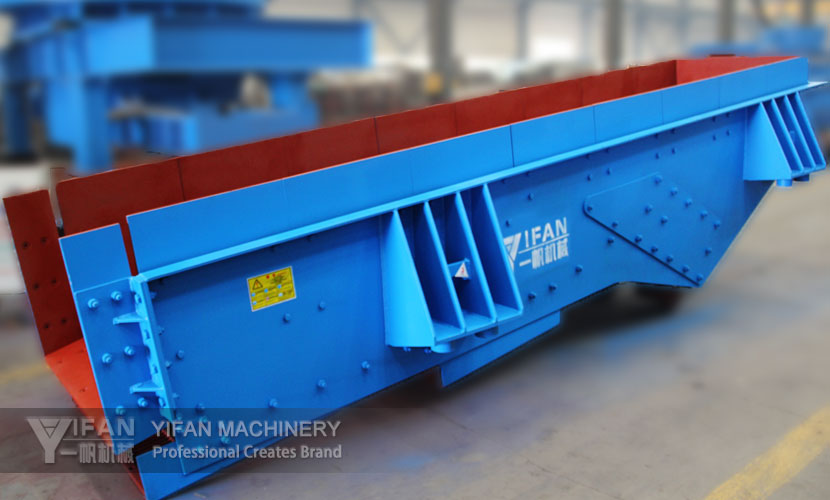

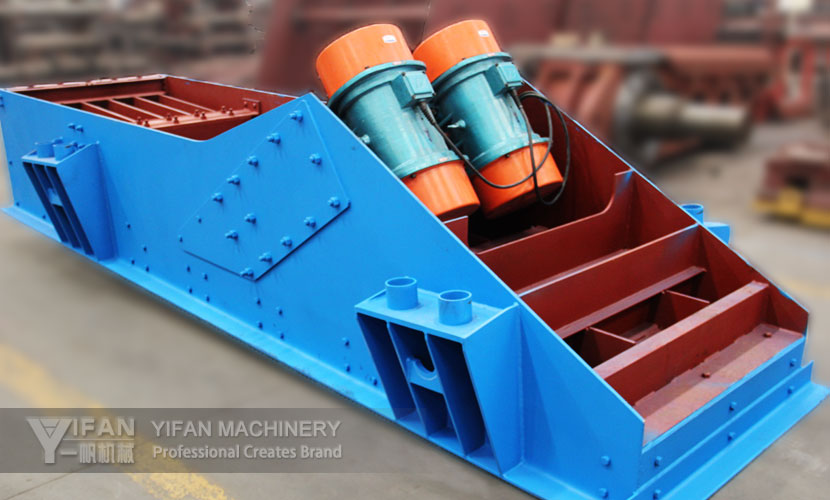

GZT series vibrating feeder uses vibrating motor to produce vibration force. It is used to feed materials into primary crusher homogeneously. Because of the bar-shaped screen, it can increase primary crushing capacity through filtering out filter out soil contained in raw materials. It is widely used in hydropower, building material and mining industries.

1. Simple structure, reliable operation, and convenient installation.
2. This series have many models. It can be specially designed and manufactured according to customers' requirements.
3. Vibrating motor has the characteristics of low noise, low electricity consumption, and excellent adjustability.

Model	Max Feed Size (mm)	Capacity (t/h)	Motor Power (kw)	Installation Slope (°)	Double Amplitude (mm)	Overall Dimensions(LxWxH) (mm)
GZT-0724	450	30-80	2×1.5	5	4-6	700x2400
GZT-0932	560	80-150	2×2.2	5	4-8	900x3200
GZT-1148	600	150-300	2×7.5	5	4-8	1100x4800
GZT-1256	800	300-500	2×12	5	4-8	1200x5600
		400-600	2×12	10	4-8
GZT-1560	900	400-600	2×13	5	4-8	1500x6000
		600-800	2×13	10	4-8
GZT-1860	1000	500-800	2×14	5	4-8	1800x6000
		1000-1200	2×14	10	4-8
GZT-2060	1200	900-1200	2×16	5	4-8	2000x6000
		1200-1500	2×16	10	4-8
GZT-2460	1400	1200-1500	2×18	5	4-8	2400x6000
		1500-2500	2×18	15	4-8
GZT-3060	1600	1500-2000	2×20	5	4-8	3000x6000
		2500-3500	2×20	15	4-8

Note:
Capacity is relative to physical character, feeding type, feeding size, composition, etc.
