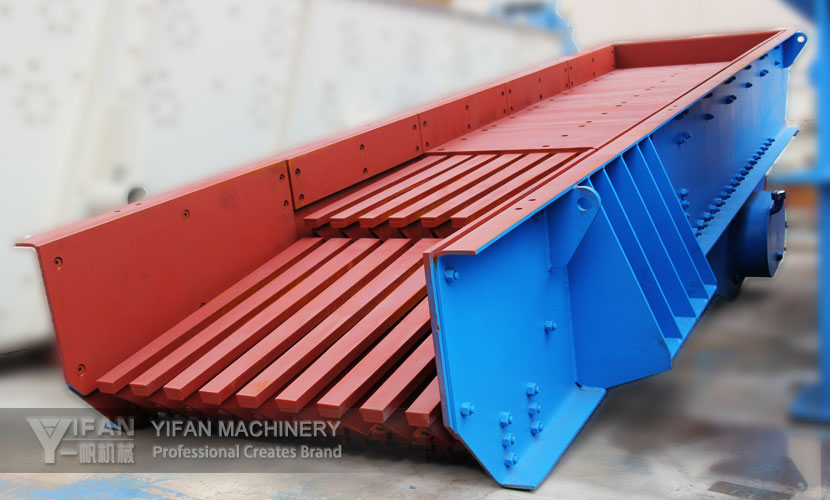

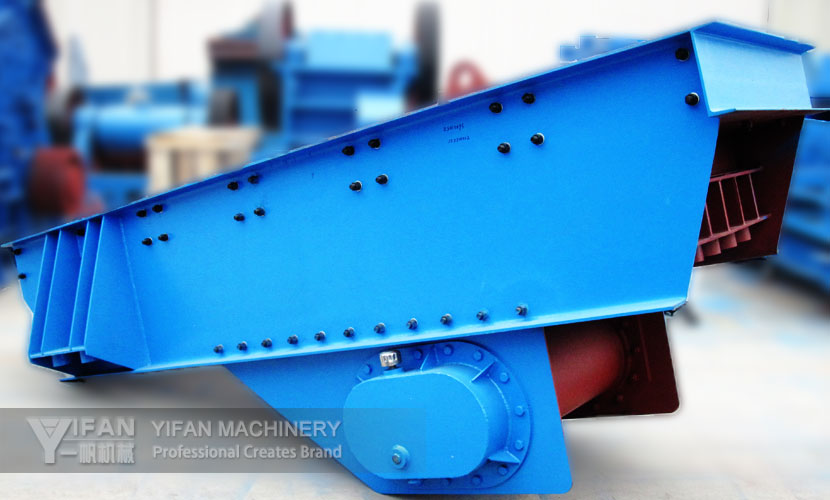

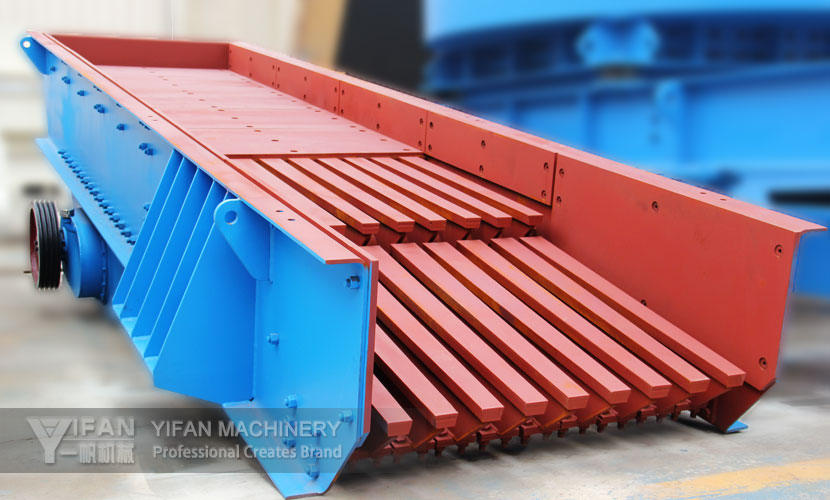

ZSW Series Vibrating Feeder is mainly used to feed material into the primary crusher homogeneously and continuously. Meanwhile, it can screen fine materials and make crusher more powerful.

1. Smooth vibrating
2. The special fence can prevent raw material blocking.
3. The distance between fences is adjustable.
4. Frequency conversion motor can be equipped to facilitate feeding control, and avoid frequent motor startup.

Model	Max Feed Size (mm)	Capacity (t/h)	Motor Power (kw)	Overall Dimensions(LxWxH) (mm)	Installation Slope (°)	Size of Funnel (mm)
ZSW-280×85	450	100-160	7.5	2880×2050×2150	3-5	2800×850
ZSW-380×95	500	160-230	11	3880×2175×1957	3-5	3800×950
ZSW-490×110	580	200-300	15	4957×2371×2125	3-5	4900×1100
ZSW-590×110	600	200-300	22	5957×2467×2151	3-5	5900×1100
ZSW-490×130	750	400-560	22	4980×3277×1525	3-5	4900×1300
ZSW-600×130	750	400-560	22	6080×3277×1525	3-5	6000×1300
ZSW-600×150	1000	500-900	30	6080×3541×1545	3-5	6000×1500
ZSW-600×180	1200	700-1200	37	6080×3852×1770	3-5	6000×1800
ZSW-600×200	1400	900-1800	45	6080×4094×1810	3-5	6000×2000
ZSW-600×240	1400	1500-2000	75	6078×4511×2289	3-5	6000×2400

Note:
Capacity is relative to physical character, feeding type, feeding size, composition, etc.
