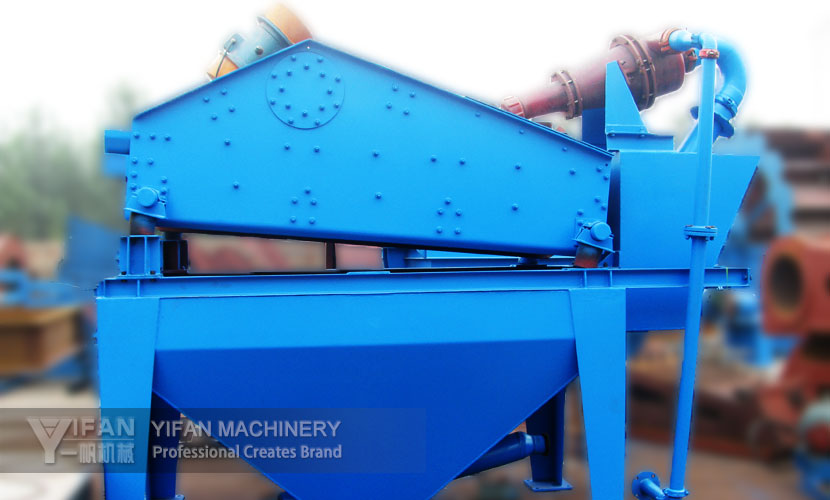

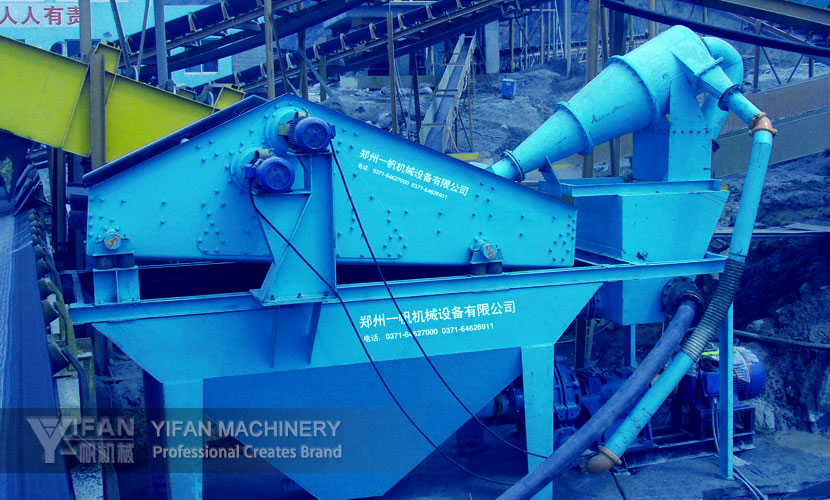

YIFAN SS series fine sand collecting system is designed on the basis of absorbing world advanced technology. It is widely used in aggregate processing system and manufactured sand production line to solve the fine sand recycling problems.

1. Solving the sand loss problem effectively;
2. Long service life and no blocking phenomenon;
3. Maximum sand recovery rate, unsurpassed technology and economic advantage;
4. Customized specifications according to customers’ requirements;

Model	Pump		Cyclone(mm)	Vibrating Screen			Capacity(m3/h)
	Power(kw)	Size(inch)		Model	Deck Size(m2)	Power(kw)
SS-06-300	7.5	2"	300	0.6×1.5	0.9	2x0.75	4.-60
SS-08-300	15	2.5"	300	0.8×2.25	1.8	2x1.5	40-100
SS-10-350	18.5	3"	350	1.0×2.25	2.25	2x1.5	70-140
SS-12-550	37	5"	550	1.2×3.0	3.6	2x2.2	100-260
SS-14-750	45	6"	750	1.4×3.0	4.2	2x3	180-343
SS-14-750II	55	6"	750	1.4×3.75	5.25	2x3.7	230-420
SS-16-950	55	8"	950	1.6×3.75	5.25	2x5.5	250-500
SS-16-2×550	55	10"	2x550	1.6×3.75	6	2x5.5	300-500
SS-18-2×750	75	10"	2x750	1.8×3.75	6.75	2x5.5	350-800

Note:
Capacity is relative to physical character, feeding type,feeding size, composition, etc.
