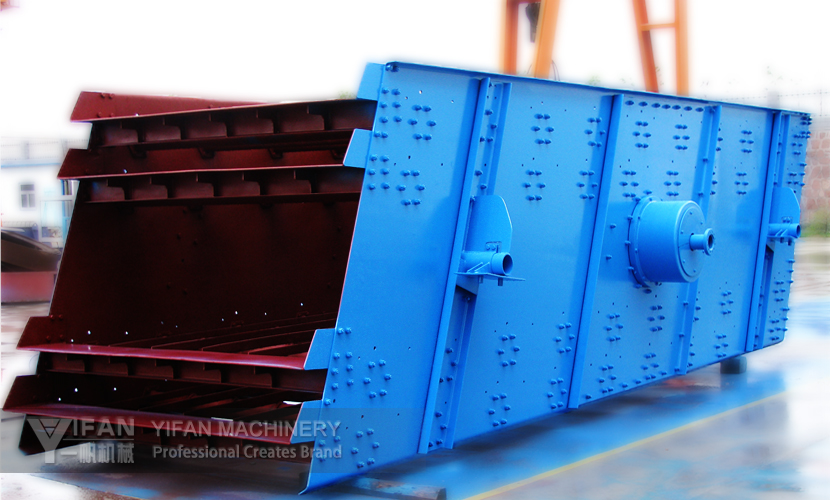

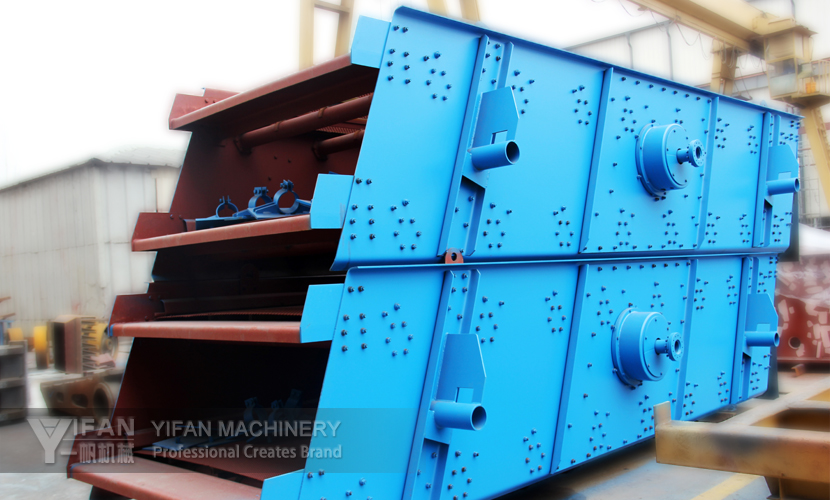

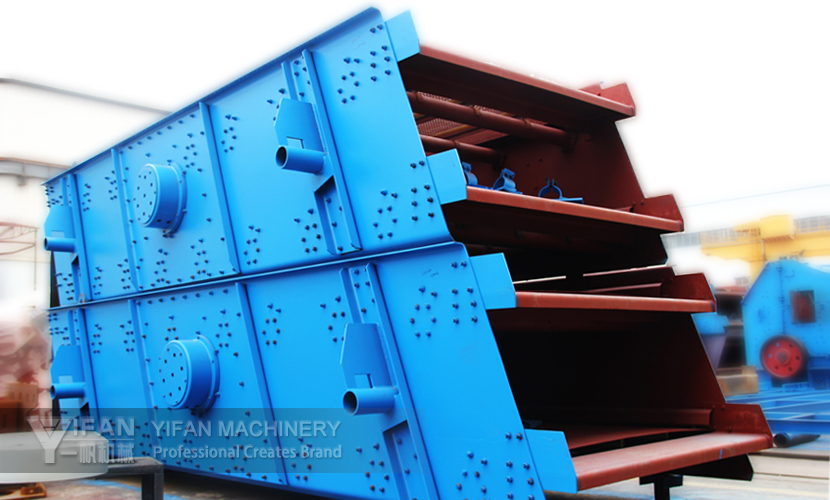

E-YK Series vibrating screens is composed by sieving box, mesh, vibration exciter and damper spring. With the advanced technology and unique structure, it is widely used in coal, metallurgy, electric power, building material and other industries.

1. Strong exciting force provided by eccentric block;
2. High strength bolts without welding;
3. Simple structure and convenient maintenance;
4. Flexible connection ensured by tire couplings and smooth operation;
5. High screening efficiency, large capacity and long service life;

Model	Screen Deck	Installation Slope	Deck Size	Vibration	Double	Capacity(t/h)	Motor Power(Kw)	Overall Dimensions
			(㎡)	Frequency	Amplitude			(L×W×H)
				(r/min)	(mm)			(mm)
E-YK1235	1	15	4.2	970	6-8	20-180	5.5	3790×1847×1010
E-2YK1235	2	15	4.2	970	6-8	20-180	5.5	4299×1868×1290
E-3YK1235	3	15	4.2	970	6-8	20-180	7.5	4393×1868×1640
E-4YK1235	4	15	4.2	970	6-8	20-180	11	4500×1967×2040
E-YK1545	1	17.5	6.75	970	6-8	25-240	11	5030×2200×1278
E-2YK1545	2	17.5	6.75	970	6-8	25-240	15	5767×2270×1550
E-3YK1545	3	17.5	6.75	970	6-8	25-240	15	5874×2270×1885
E-4YK1545	4	17.5	6.75	970	6-8	25-240	18.5	5994×2270×2220
E-YK1548	1	17.5	7.2	970	6-8	28-270	11	5330×2228×1278
E-2YK1548	2	17.5	7.2	970	6-8	28-270	15	6067×2270×1557
E-3YK1548	3	17.5	7.2	970	6-8	28-270	15	5147×2270×1885
E-4YK1548	4	17.5	7.2	970	6-8	28-270	18.5	6294×2270×2220
E-YK1860	1	20	10.8	970	6-8	52-567	15	6536×2560×1478
E-2YK1860	2	20	10.8	970	6-8	32-350	18.5	6826×2570×1510
E-3YK1860	3	20	10.8	970	6-8	32-350	18.5	7145×2570×1910
E-4YK1860	4	20	10.8	970	6-8	32-350	22	7256×2660×2244
E-YK2160	1	20	12.6	970	6-8	40-720	18.5	6535×2860×1468
E-2YK2160	2	20	12.6	970	6-8	40-720	22	6700×2870×1560
E-3YK2160	3	20	12.6	840	6-8	40-720	30	7146×2960×1960
E-4YK2160	4	20	12.6	840	6-8	40-720	30	7254×2960×2205
E-YK2460	1	20	14.4	970	6-8	50-750	18.5	6535×3210×1468
E-2YK2460	2	20	14.4	840	6-8	50-750	30	7058×3310×1760
E-3YK2460	3	20	14.4	840	7-9	50-750	30	7223×3353×2220
E-4YK2460	4	20	14.4	840	6-8	50-750	30	7343×3893×2245
E-YK2475	1	20	18	970	6-8	60-850	22	7995×3300×1552
E-2YK2475	2	20	18	840	6-8	60-850	30	8863×3353×1804
E-3YK2475	3	20	18	840	6-8	60-850	37	8854×3353×2220
E-4YK2475	4	20	18	840	6-8	60-850	45	8878×3384×2520
E-2YK2775	2	20	20.25	970	6-8	80-860	30	8863×3653×1804
E-3YK2775	3	20	20.25	970	6-8	80-860	37	8854×3653×2220
E-4YK2775	4	20	18	840	6-8	70-900	55	8924×3544×2623
E-YK3060	2	20	18	840	6-8	70-900	30	6545×3949×1519
E-2YK3060	2	20	18	840	6-8	70-900	37	7282×3990×1919
E-3YK3060	3	20	18	840	6-8	70-900	45	7453×4024×2365
E-4YKD3060	4	20	18	840	6-8	70-900	2×30	7588×4127×2906
E-YK3075	1	20	22.5	840	6-8	84-1080	37	7945×3949×1519
E-2YK3075	2	20	22.5	840	6-8	84-1080	45	8884×4030×1938
E-2YKD3075	2	20	22.5	840	6-8	84-1080	2×30	8837×4133×1981
E-3YK3075	3	20	22.5	840	6-8	84-1080	55	9053×4030×2365
E-3YKD3075	3	20	22.5	840	6-8	84-1080	2×30	9006×4127×2406
E-4YKD3075	4	20	22.5	840	6-8	100-1080	2×30	9136×3862×2741
E-YK3680	1	20	27	800	6-8	90-1100	45	7945×4354×1544
E-2YKD3680	2	20	27	800	7-9	149-1620	2×37	8917×4847×1971
E-3YKD3680	3	20	27	800	7-9	149-1620	2×45	9146×4847×2611
E-2YKD3690	2	20	32.4	800	7-9	160-1800	2×37	9312×5691×5366
E-3YKD3690	3	20	32.4	800	7-9	160-1800	2×45	9312×5691×6111
E-2YKD40100	2	20	40	800	7-9	200-2000	2×55	10252×6091×5366
E-3YKD40100	3	20	40	800	6-8	200-2000	2×75	10252×6091×6111

Note:
The processing capacity listed in the table is based on dry classification of limestone, whose bulk density is 1.6t/m³.The listed capacity is only for reference. The actual data needs to be fixed by tech department according to worksite situation.
