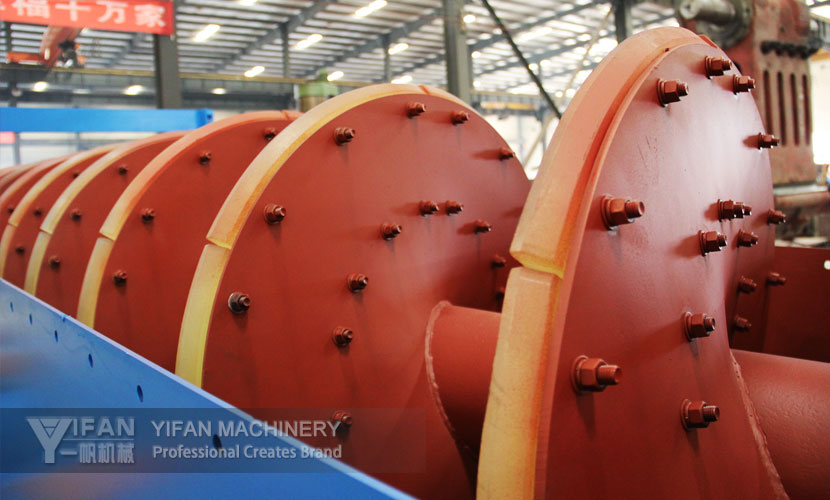

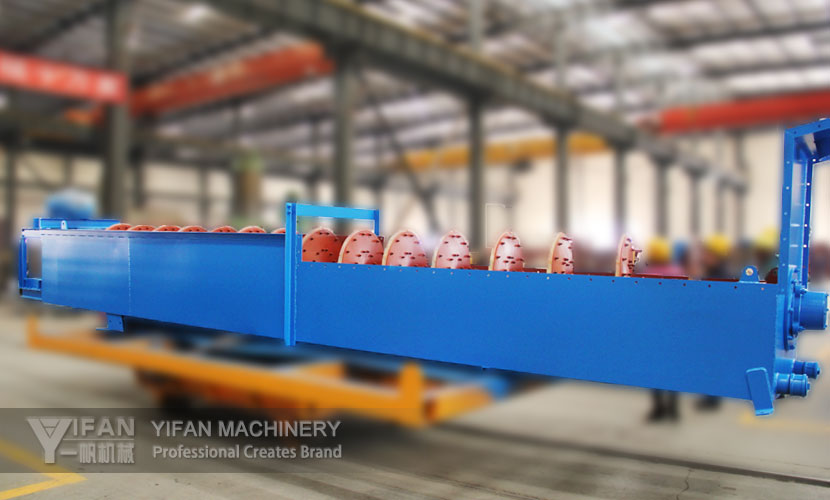

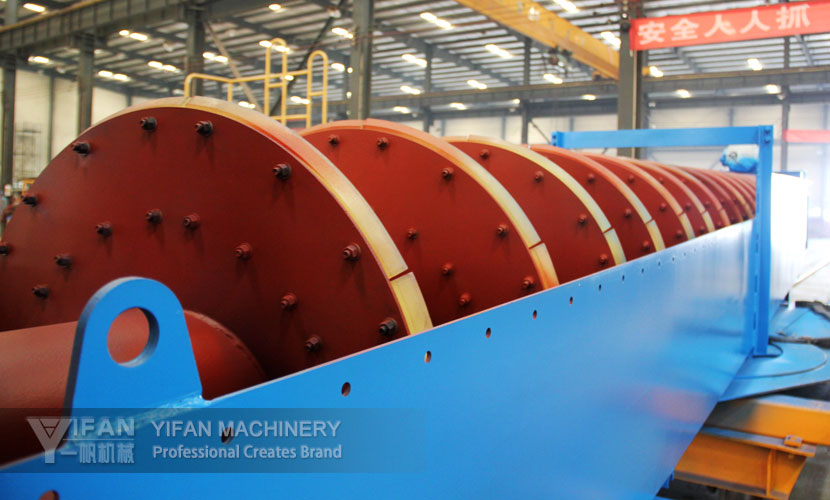

XL series sand washer can wash and separate soil and foreign materials in sand. Its novel structure, adjustable overflow baffle and reliable arrangement can ensure washing effect. XL series sand washer is widely used to wash, classify, and rid impurities in highway, hydropower, construction and other industries. It is better to wash construction and road sandstone.

XL series sand washer has the characteristics of reasonable structure, convenient maintenance, high output, low power consumption, and high cleanness degree. Its novel sealed structure, totally-enclosed transmission system, and adjustable overflow slice can ensure its high efficiency, durability, cleanness, dehydrating effect, and product size.

Model	XL508	XL610	XL762	XL915	2XL915	XL1115	2XL1115
Screw Diameter(mm)	508	610	762	915	915	1115	1115
Length of Tub (mm)	6705	7225	7620	7585	7585	9782	9782
Max Feed Size (mm)	≤10	≤10	≤10	≤10	≤10	≤10	≤10
Capacity (t/h)	20	40-50	50-75	100	200	175	350
Speed Of Screw (r/min)	38	32	26	21	21	17	17
Motor Power (kw)	5.5	7.5	11	11	2×11	15	2×15
Water Consumption (t/h)	6-60	6-63	9-63	10-80	20-160	20-150	40-300
Overall Dimensions	6500×2020	7350×2510	8545×2650	8900×2861	8900×3765	11270×3645	11270×4365
(L×W×H)(mm)	×2946	×3303	×3862	×3821	×3821	×4340	×4415
Weight (t)	2.52	3.09	5.23	6.27	11.11	10.18	17.94

Note:

Capacity is relative to physical character, feeding type, feeding size, composition, etc.
