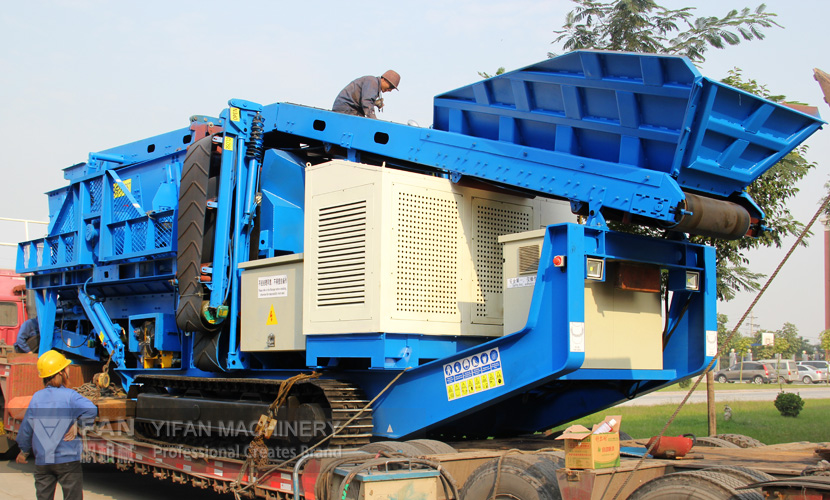

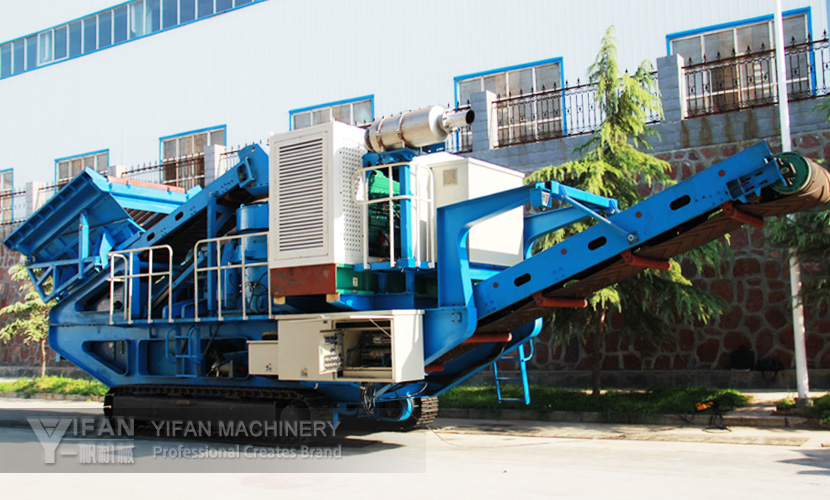

YIFAN PT-C series track mounted mobile cone crushing plant is a new kind of high efficient crushing equipment. Its crawler design can realize working in any terrain condition. As an excellent and integrated design, this plant has the features of high productivity, high crushing ratio and uniform product size.

1. Fuel saving, environmental protection and low cost;
2. Light weight, small size and convenient transportation;
3. Attached power package adopts optimized design.
4. Pre-screening system can increase crushing efficiency greatly.
5. The double-deck sieving machinery its mobile screening equipment adopts can provide great support.

PT-C Series Mobile Cone Crusher Plants	PT-C01	PT-C11	PT-C02
Max feed size (mm)	160	180	260
Discharge setting (mm)	9-32	9-32	9-51
Crushing capacity (t/h)	up to 150	up to 200	up to 320
Driving unit
Engine	Cummins or CAT	Cummins or CAT	Cummins or CAT
Power (kw)	261	317	400
Feed hopper
Hopper volume (m³)	4	4	6
The feeding belt conveyor
Belt width(mm)	800	800	1000
Discharging belt conveyor
Belt width(mm)	1000	1000	1200
Crawler unit
Drive	hydraulic	hydraulic	hydraulic
Dimensions and weights
Working dimensions
L x W x H mm	13767x3621x4497	13850x3650x4550	14530x4150x4720
Transport dimensions
L x W x H mm	14273x3543x4024	14320x3570x4050	14900x3640x4130
-Weight (t) Approximately	37	39.5	49

Note: The capacity is total tons per hour passing through crusher at open circuit when crushing medium and low hardness materials with the bulk density of 1.6x10³kg/m³. Capacity is relative to physical character, feeding type, feeding size, composition, etc.
