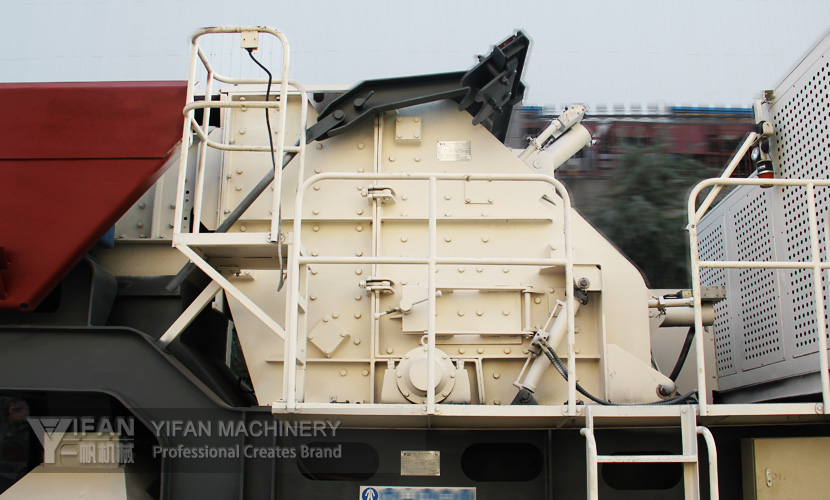

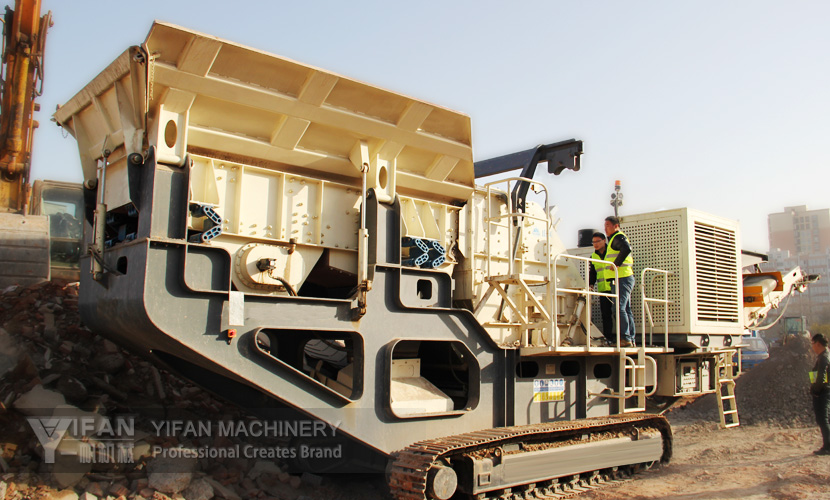

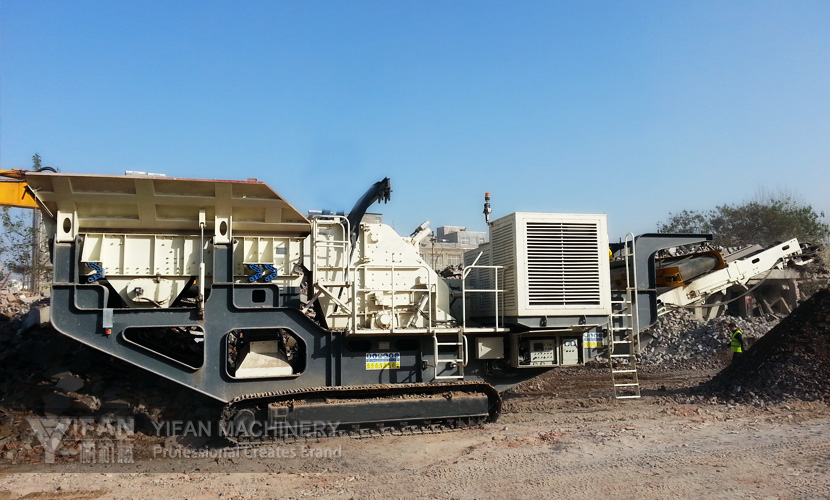

PT-C series track-mounted impact crushing plant is equipped with AP-PH-A series impact crusher, which is especially suitable for producing quarry material, construction rubble, paving stone and concrete. With the advanced HAZEMAG technology concept, PT-PH10 can be optimally used as a primary crushing plant. The optional magnetic separator can be applied to recycling industry effectively. The plant is eminently suitable for processing natural stones since it can provide excellent end product size, usually smaller than 45mm.

1. Fuel saving, environmental protection and low cost;
2. Light weight, small size and convenient transportation;
3. Attached power package adopts optimized design.
4. Pre-screening system can increase crushing efficiency greatly.
5. The double-deck sieving machinery its mobile screening equipment adopts can provide great support.

PT-PH Series Mobile Impactor Plants	PT-PH10	PT-PH14
Feed opening size(mm*mm)	810 x 1030	1025 x 1360
Max edge length in one direction(mm)	800	1000
Crushing capacity(t/h)	up tp 250	up to 420
Drive	diesel-direct	diesel-direct
Driving unit
Engine	CAT C9	CAT C18
Power (kw)	242	470
Feed hopper
Hopper volume (m³)	4.8	8.5
Grizzly feeder with pre-screening(two-deck)
Model	GSF3712	GSF5120
Drive	hydraulic	hydraulic
The main belt conveyor
Model	B1200	B1400
Crawler unit
Drive	hydraulic	hydraulic
Permanent magnetic separator
Magnetic separator	option	option
The unearthed belt conveyor
Model	B650  option	B650 option
Dimensions and weights
Working dimensions
L x W x H mm	14600x4500x4200	18000x6000x4800
Transport dimensions
L x W x H mm	13300x3350x3776	17000x3730x4000
Weight (t) Approximately	43	70

Note: The capacity is total tons per hour passing through crusher at open circuit when crushing medium and low hardness materials with the bulk density of 1.6x10³kg/m³. Capacity is relative to physical character, feeding type, feeding size, composition, etc.
