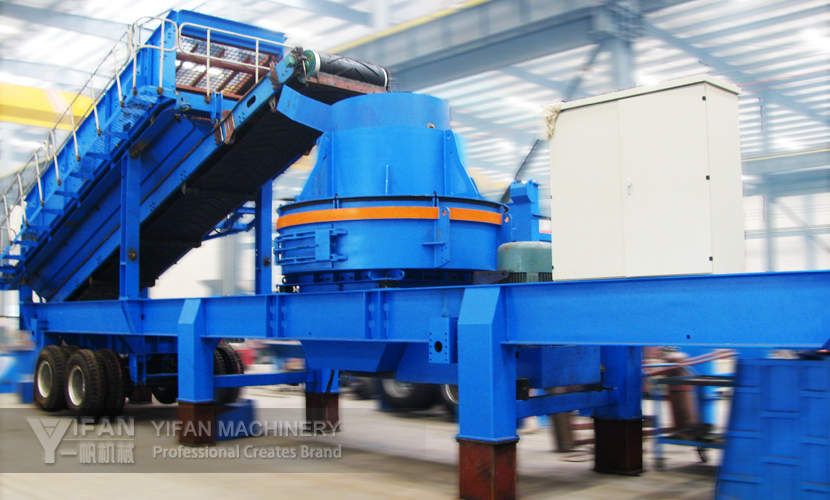

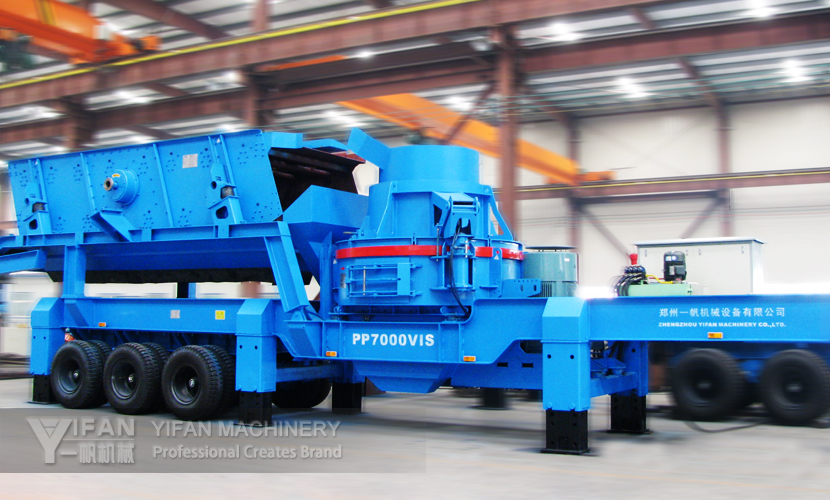

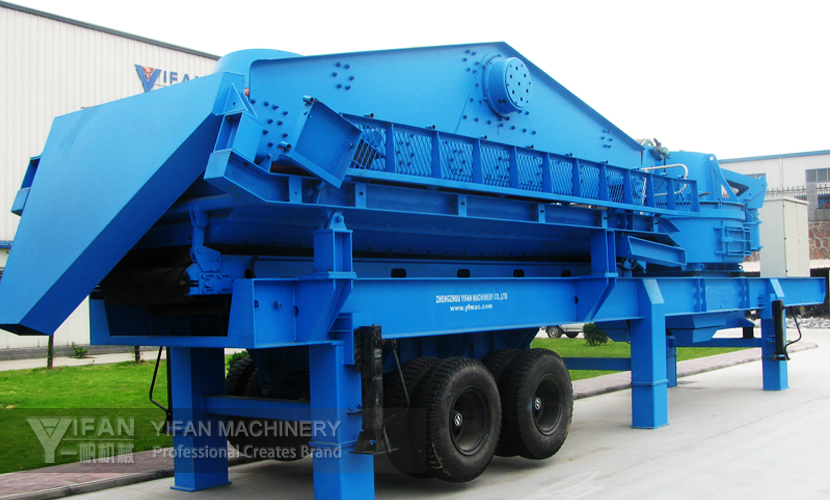

PT-VSI series mobile sand making machine, also named as impact mobile crushing plant, is designed and manufactured with world advanced Germany technology.wit the first level mobile crushing and screening technology, it can fully meet customers’ requirements on mobile crushing and change your profit mode.

1. Fuel saving, environmental protection and low cost;
2. Light weight, small size and convenient transportation;
3. Attached power package adopts optimized design.
4. Pre-screening system can increase crushing efficiency greatly.
5. The double-deck sieving machinery its mobile screening equipment adopts can provide great support.

PT-VSI series Mobile VSI Crusher Plants	PT-V 05	PT-V 06	PT-V 07
VSI Crusher type	VSI 5000	VSI 6000	VSI 7000
Max feed size(mm)	65	70	70
Crushing capacity(t/h)	80-150	120-150	180-350
Driving unit
Engine	Cummins or CAT	Cummins or CAT	Cummins or CAT
Power (kw)	400	480	550
Feed hopper
Hopper volume (m³)	4	6	6
The feeding belt conveyor
Belt width(mm)	800	1000	1000
Discharging belt conveyor
Belt width(mm)	1000	1000	1200
Crawler unit
Drive	hydraulic	hydraulic	hydraulic
Dimensions and weight
Working dimension
L x W x H mm	13767X3621X4425	13940X3820X4980	13940X3920X4980
Transport dimensions
L x W x H mm	14273x3543x4024	14320x3751x4130	14320x3851x4330
Weight (t) Approximately	38	43	47

Note: The capacity is total tons per hour passing through crusher at open circuit when crushing medium and low hardness materials with the bulk density of 1.6x10³kg/m³. Capacity is relative to physical character, feeding type, feeding size, composition, etc.
